Pipeline Protection Products

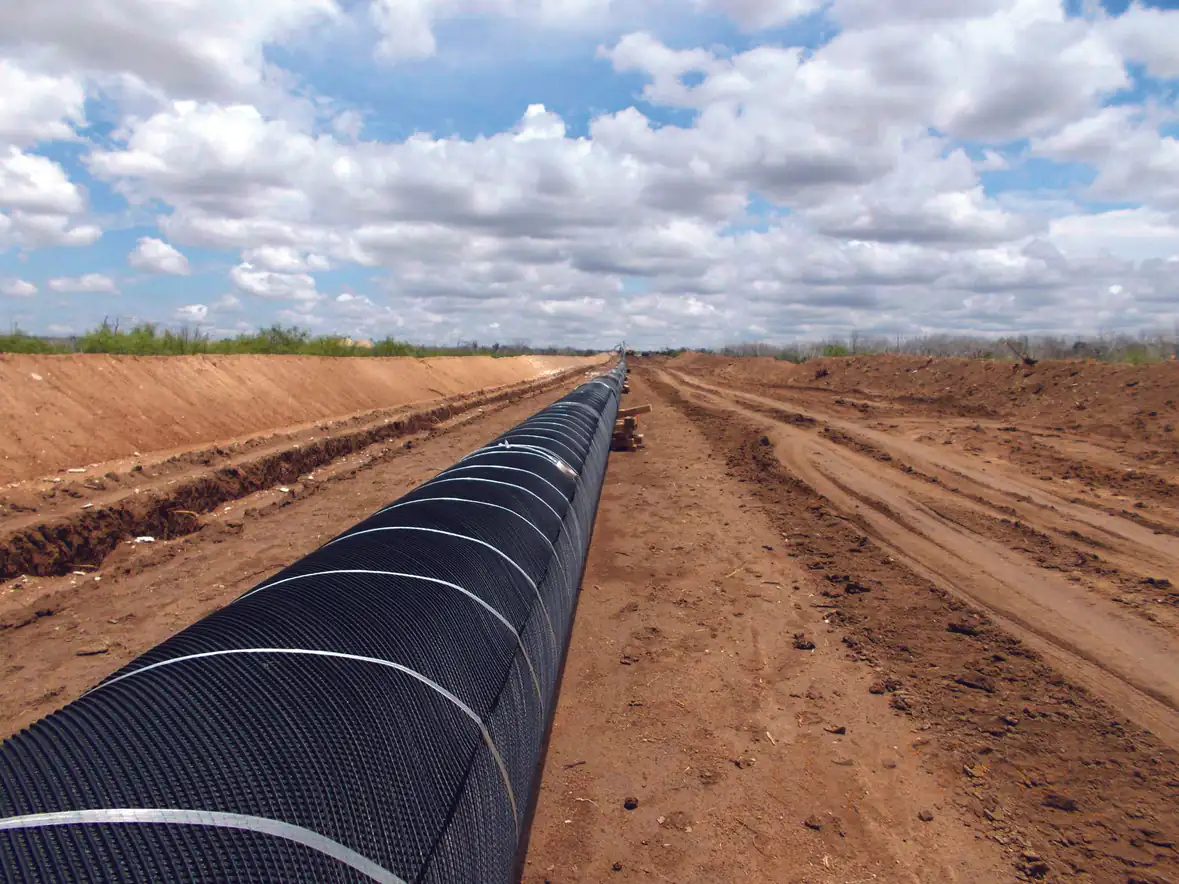

RockGuard® HD
RockGuard® HD Pipeline Protection Mesh is an 11 mm, three dimensional bi-planar extruded diamond structured mesh rock shield manufactured from polyethylene, providing long-term protection to pipelines during backfill operations, rock migration, and even during future excavation.
Features & Benefits
Effective Performance in All Climates
Remains flexible, regardless of temperature
Consistent Thickness
11 mm (greater than 3/8") throughout roll/pad
Does Not Interfere with Cathodic Protection
Open mesh design allows cathodic protection to completely protect the full circumference of the pipe
Initial Backfill & Long-Term Protection
Excellent impact and compressive strength to ensure the pipe's coating integrity
Resists Wicking & Allows Free Water Flow
Doesn't affect the natural movement of water
Lighter than the Competition
Ergonomically correct weight enhances safety
Custom Sizing
Quickly and easily install using RockGuard® Tape
Pipeline Protection Products

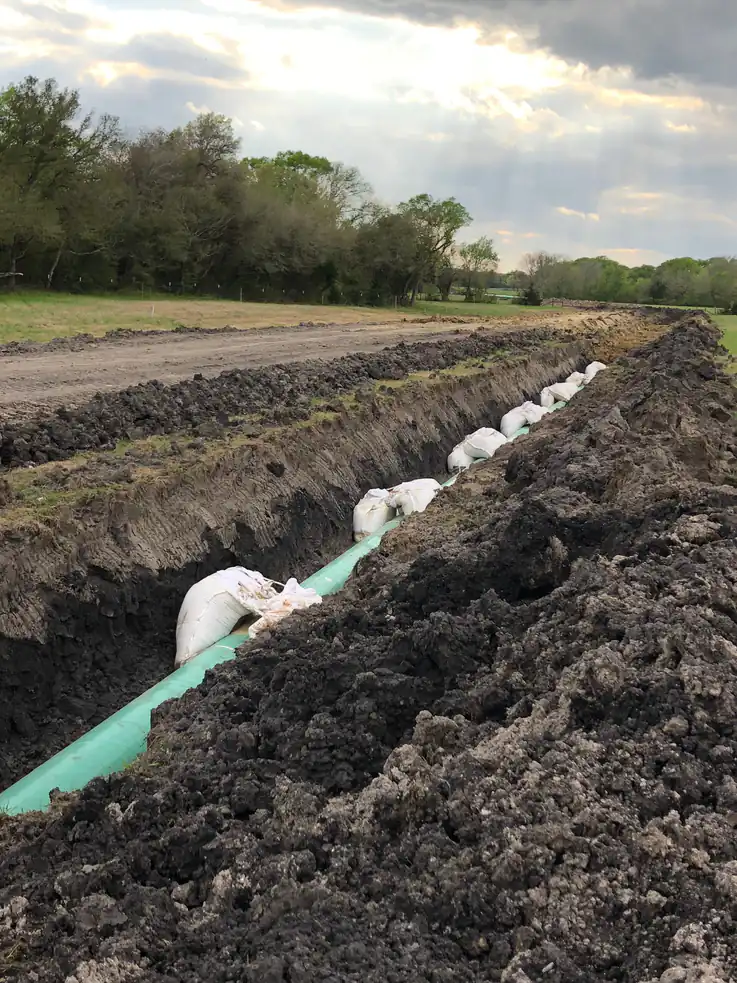

PipeWeights
PipeWeights is a breathable, woven polypropylene geotextile bag designed as a buoyancy control feature in the pipeline industry. It is filled with aggregate and placed on the pipeline to provide long-term buoyancy control.
Features & Benefits
Restricts Uplift
Reduces damage to the pipe's coating
Permeable Buoyancy Weight
Allows groundwater and cathodic protection an easy path
One of the Strongest & Most Durable on the Market
Resistant to acidic or basic soils
High Strength Geotextile Fabric
High quality container fully supports aggregate
Easy to Transport
Fill empty bags on the jobsite with different sized Hoppers
Pipeline Protection Products
Accessories

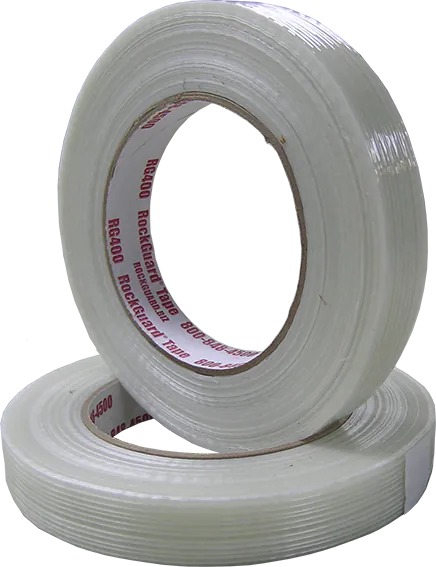

RockGuard® Tape is a 3/4" filament tape made for installing RockGuard® products. It makes RockGuard® HD easy to install — simply wrap it circumferentially around the pipe every 6".
PipeWeights Hoppers make it easy to pour aggregate into PipeWeights bags. Hoppers are available for jobsite rental, and we also offer on-site filling services and delivery to the lay down yard or right-of-way.
